aims to add 1,000 battery swap stations and 20,000 charging piles in 2024 in China.

Nio (NYSE: NIO) unveiled its fourth-generation battery swap station, new higher-power supercharger, and installation targets for 2024 at its Nio Day 2023 event today.

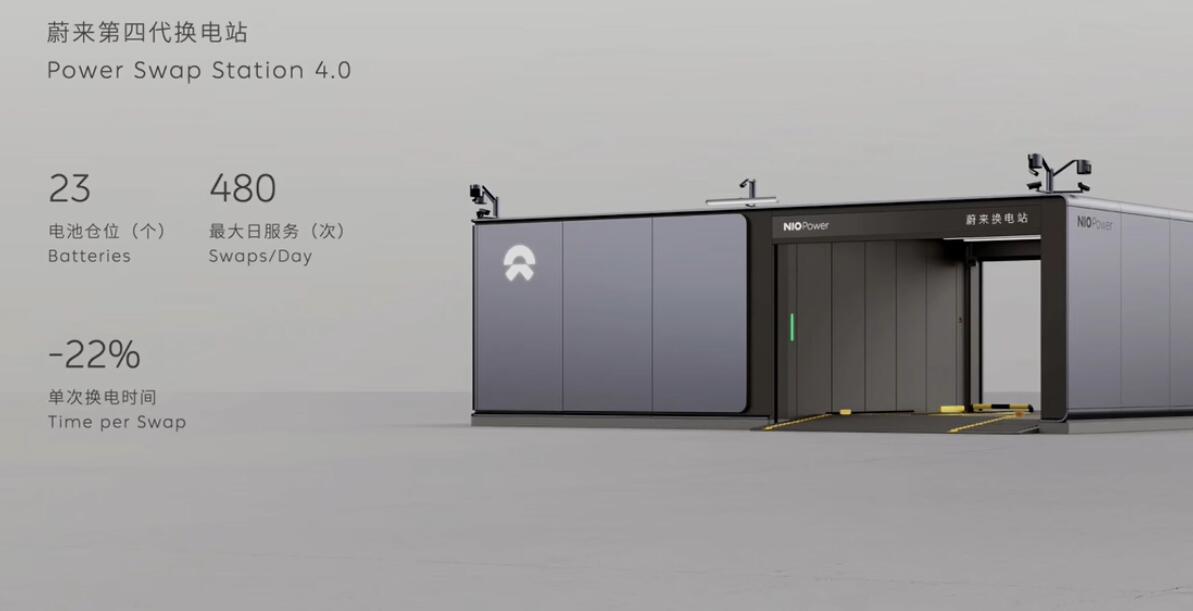

4th-gen swap station

The electric vehicle (EV) maker's upgraded battery swap station will have 23 battery bays and the capacity of a single day's service will be increased to 480 with a 22 percent reduction in time per service, it said.

Join us on or

This fourth-generation station will feature four Nvidia Orin X chips with six ultra-wide angle LiDARs and an overall computing power of 1,016 Tops.

The configuration allows these sites to more easily handle complex environments, opening up the possibility of more experiences where they are interconnected with vehicles, Nio said.

The next-generation sites will be compatible with multi-size battery packs and support multi-brand shared battery swap services.

Nio will equip the fourth-generation stations with a 60-square-meter photovoltaic system on top, saving nearly 18,000 kWh of electricity per year per station, according to the company.

Installation of the new generation of stations will begin in April 2024, the company said.

The battery swap stations that Nio is currently installing are the third generation, which was unveiled at the Nio Day 2022 event on December 24, 2022, and installation began in April 2023.

The third-generation battery swap station is capable of storing up to 21 battery packs, up from 13 in its predecessor and five in the first generation of the facility.

The third-generation battery swap station increased the capacity of a single station to 408 services per day, a 30 percent increase over the second-generation. Nio vehicles can change batteries at the third-generation station in as little as 2 minutes and 30 seconds, 20 percent faster than the previous generation.

Nio's third-generation battery swap station is equipped with two LiDARs and two NVIDIA Orin chips for a total computing power of 508 Tops.

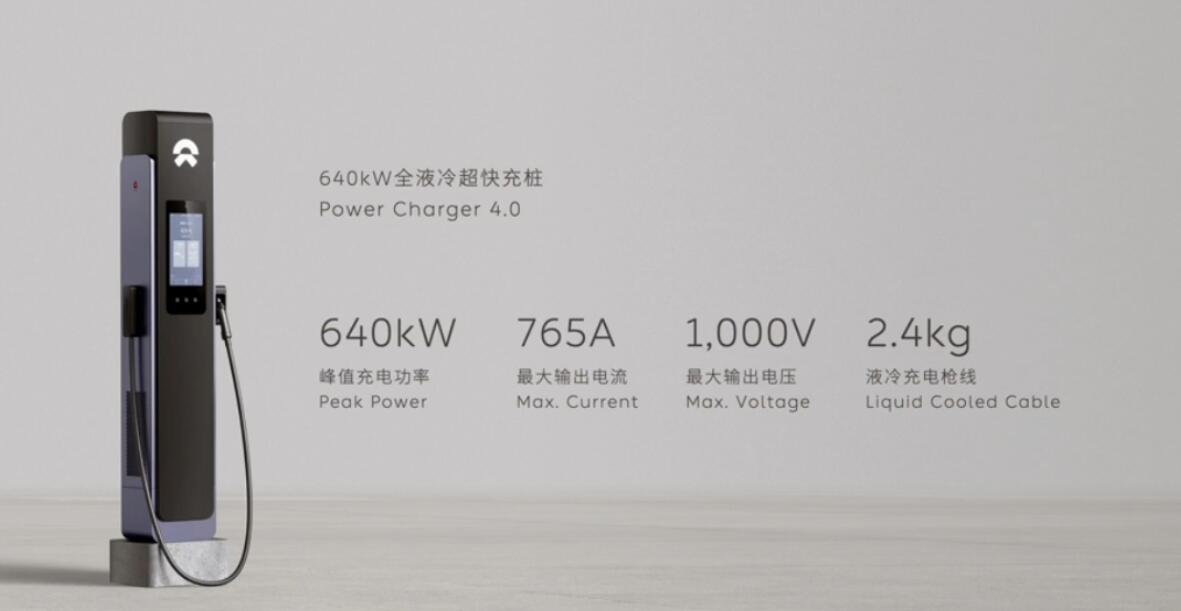

640-kW supercharger

Nio also unveiled the fourth generation of its supercharger pile at today's event, with a further increase in peak power over its predecessor.

This new supercharger has a peak power of up to 640 kW, a maximum output current of 765 A and a maximum output voltage of 1,000 V.

The supercharger pile has a liquid-cooled charging gun cable and weighs just 2.4 kg, the lightest in the industry, Nio said.

The charging pile enables intelligent distribution of charging power and maximizes charging efficiency, the company said.

Nio will begin installing this new generation of superchargers in April 2024.

The company is currently installing superchargers with a peak power of 500 kW, unveiled on Nio Day 2022 and first installed in March 2023.

The 500-kW charging pile is capable of delivering a maximum charging current of 660 A and can charge from 10 percent to 80 percent in as little as 12 minutes if the vehicle is built on the 800 V platform, or 20 minutes for 400 V models.

2024 target

Nio plans to continue adding 1,000 battery swap stations in China in 2024, bringing the total to more than 3,310.

The company unveiled plans to add 400 battery swap stations in 2023 at Nio Day 2022, but raised that target to 1,000 in February.

Yesterday, Nio achieved its target of adding 1,000 battery swap stations this year, taking the total to 2,305.

The company aims to add 20,000 new charging piles by 2024, taking the total to more than 41,000.

Nio last month announced partnerships with Changan Automobile and Geely Holding to build a battery swap network and battery swap-enabled models.

Nio's battery swap network will include both a dedicated network and a shared network, which the company will begin building next year and will be available for both the Nio and Alps brands, William Li, Nio's founder, chairman, and CEO, said in a December 5 earnings call.

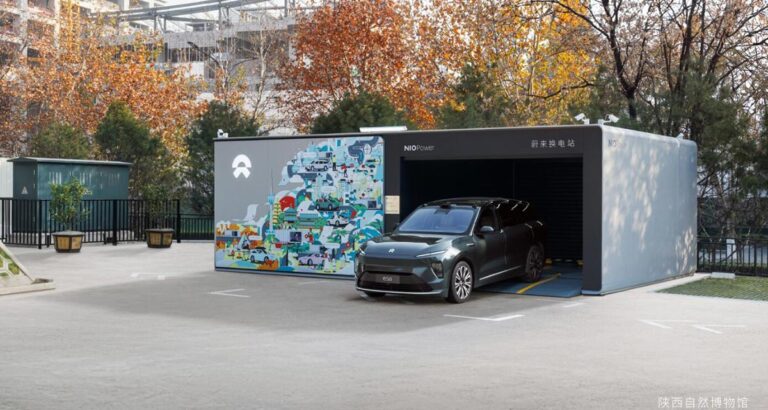

Nio reaches target of adding 1,000 swap stations in China in 2023

Nio's power facilities in China (As of May 31, 2023)

DateSwap StationsCharger StationsChargers3rd-party Chargers
202305311,448 2,640 15,649 710,000+
202305301,434 2,627 15,601 710,000+
202305291,432 2,624 15,591 710,000+
202305281,428 2,620 15,534 710,000+
202305271,426 2,619 15,530 710,000+
202305261,424 2,616 15,522 710,000+
202305251,422 2,614 15,514 710,000+
202305241,419 2,610 15,496 710,000+
202305221,417 2,603 15,453 710,000+
202305211,414 2,596 15,431 710,000+
202305201,411 2,588 15,356 710,000+
202305191,408 2,584 15,338 710,000+
202305181,407 2,584 15,338 700,000+
202305171,405 2,582 15,334 700,000+
202305151,403 2,580 15,312 700,000+
202305141,395 2,574 15,271 700,000+
202305131,394 2,573 15,269 700,000+
202305121,392 2,567 15,213 700,000+
202305111,391 2,560 15,191 700,000+
202305101,389 2,553 15,149 700,000+
202305081,388 2,553 15,149 700,000+
202305071,386 2,553 15,149 700,000+
202305011,384 2,550 15,137 700,000+
202304301,384 2,547 15,128 700,000+
202304291,379 2,536 15,068 690,000+
202304281,378 2,531 15,043 690,000+
202304271,374 2,521 14,964 690,000+
202304251,369 2,512 14,903 690,000+
202304231,366 2,506 14,857 690,000+
202304221,364 2,501 14,836 690,000+
202304211,362 2,499 14,829 690,000+
202304201,359 2,496 14,819 690,000+
202304191,357 2,488 14,768 680,000+
202304181,356 2,488 14,768 680,000+
202304161,348 2,464 14,653 680,000+
202304151,347 2,461 14,635 680,000+
202304141,344 2,455 14,584 680,000+
202304131,342 2,451 14,541 680,000+
202304121,332 2,451 14,541 680,000+
202304101,331 2,448 14,496 680,000+
202304081,330 2,447 14,494 680,000+
202304071,329 2,443 14,470 680,000+
202304041,328 2,442 14,469 680,000+
202304031,327 2,442 14,469 680,000+
202304021,327 2,440 14,465 680,000+
202303311,326 2,432 14,438 680,000+
202303301,326 2,429 14,422 680,000+
202303291,326 2,427 14,409 680,000+
202303281,325 2,426 14,405 680,000+
202303261,325 2,419 14,275 680,000+
202303241,325 2,415 14,261 680,000+
202303231,323 2,408 14,193 680,000+
202303221,322 2,398 14,135 670,000+
202303211,322 2,396 14,123 670,000+
202303201,322 2,395 14,117 670,000+
202303181,321 2,393 14,111 670,000+
202303161,321 2,389 14,072 670,000+
202303151,321 2,388 14,074 660,000+
202303101,321 2,383 14,054 660,000+
202303081,321 2,380 14,010 660,000+
202303071,321 2,375 13,993 660,000+
202303061,321 2,372 13,972 660,000+
202303051,321 2,370 13,940 660,000+
202302281,320 2,369 13,925 630,000+
202302271,317 2,352 13,816 630,000+
202302261,316 2,350 13,805 630,000+
202302251,316 2,349 13,802 630,000+
202302241,315 2,345 13,763 630,000+
202302211,315 2,340 13,734 630,000+
202302201,314 2,338 13,722 630,000+
202302161,313 2,334 13,711 630,000+
202302111,313 2,331 13,697 630,000+
202302101,313 2,327 13,674 630,000+
202302081,313 2,326 13,659 630,000+
202302071,313 2,321 13,634 630,000+
202302031,313 2,320 13,632 630,000+
202301221,313 2,319 13,629 630,000+
202301201,312 2,318 13,619 630,000+
202301191,312 2,317 13,617 630,000+
202301161,311 2,307 13,560 630,000+
202301151,311 2,304 13,530 630,000+
202301131,309 2,304 13,530 630,000+
202301121,307 2,299 13,493 630,000+
202301111,307 2,297 13,460 630,000+
202301101,306 2,296 13,458 630,000+
202301091,306 2,291 13,426 630,000+
202301081,306 2,290 13,420 630,000+
202301061,306 2,287 13,414 630,000+
202301021,305 2,283 13,374 630,000+
202212311,305 2,281 13,368 630,000+
202212301,294 2,261 13,263 630,000+
202212291,294 2,254 13,206 630,000+
202212281,294 2,253 13,202 630,000+
202212271,288 2,246 13,148 630,000+
202212261,287 2,246 13,148 620,000+
202212241,286 2,239 13,083 620,000+
202212231,285 2,238 13,079 620,000+
202212221,280 2,233 13,067 620,000+
202212211,277 2,226 13,030 610,000+
202212201,274 2,221 13,008 610,000+
202212181,271 2,218 12,992 610,000+
202212171,267 2,209 12,916 610,000+
202212161,266 2,207 12,912 610,000+
202212151,264 2,204 12,902 610,000+
202212141,258 2,192 12,818 610,000+
202212131,255 2,186 12,777 610,000+
202212121,255 2,185 12,773 610,000+
202212101,255 2,184 12,771 610,000+
202212091,254 2,183 12,770 600,000+
202212081,253 2,177 12,739 600,000+
202212071,250 2,170 12,689 600,000+
202212051,247 2,167 12,683 600,000+
202212041,246 2,166 12,679 600,000+
202211301,245 2,156 12,572 600,000+
202211291,241 2,147 12,483 600,000+
202211281,235 2,140 12,395 600,000+
202211271,235 2,130 12,375 600,000+
202211231,229 2,099 12,142 600,000+
202211221,228 2,090 12,073 600,000+
202211201,221 2,085 12,049 600,000+
202211191,220 2,085 12,049 600,000+
202211181,217 2,076 11,983 600,000+
202211171,216 2,072 11,929 600,000+
202211161,215 2,071 11,925 590,000+
202211151,213 2,066 11,893 590,000+
202211141,211 2,060 11,876 590,000+
202211131,210 2,059 11,867 590,000+
202211121,208 2,058 11,861 590,000+
202211111,207 2,057 11,852 590,000+
202211091,205 2,055 11,834 590,000+
202211081,204 2,054 11,830 590,000+
202211071,201 2,050 11,817 590,000+
202211061,200 2,049 11,815 590,000+
202211051,197 2,046 11,770 590,000+
202211041,195 2,044 11,760 590,000+
202211031,194 2,043 11,754 590,000+
202211021,194 2,042 11,751 590,000+
202210311,194 2,041 11,747 590,000+
202210301,190 2,032 11,690 590,000+
202210291,189 2,028 11,668 590,000+
202210281,189 2,014 11,636 590,000+
202210271,185 2,009 11,606 590,000+
202210261,185 2,006 11,585 590,000+
202210251,185 2,004 11,581 590,000+
202210231,185 2,003 11,569 590,000+
202210221,181 1,998 11,551 590,000+
202210191,177 1,996 11,533 590,000+
202210191,176 1,991 11,505 590,000+
202210181,176 1,987 11,460 590,000+
202210171,175 1,986 11,460 590,000+
202210161,171 1,984 11,446 590,000+
202210141,169 1,981 11,436 580,000+
202210121,165 1,975 11,398 580,000+
202210111,162 1,974 11,396 580,000+
202210101,161 1,973 11,392 580,000+
202210091,159 1,973 11,392 580,000+
202210081,156 1,969 11,371 580,000+
202210051,155 1,969 11,371 580,000+
202210031,154 1,969 11,371 580,000+
202210021,153 1,966 11,351 570,000+
202210011,151 1,964 11,307 570,000+
202209301,151 1,962 11,292 570,000+
202209291,145 1,938 11,203 570,000+
202209281,141 1,930 11,173 570,000+
202209271,132 1,927 11,154 570,000+
202209261,129 1,924 11,145 570,000+
202209251,127 1,921 11,133 570,000+
202209241,123 1,916 11,100 570,000+
202209231,123 1,910 11,056 570,000+
202209221,123 1,904 11,034 570,000+
202209211,122 1,900 10,981 570,000+
202209201,120 1,899 10,977 570,000+
202209191,119 1,899 10,977 570,000+
202209171,118 1,896 10,958 570,000+
202209161,116 1,895 10,956 570,000+
202209151,112 1,893 10,951 570,000+
202209141,108 1,885 10,887 570,000+
202209121,106 1,883 10,859 570,000+
202209111,104 1,882 10,839 570,000+
202209101,103 1,881 10,837 570,000+
202209091,097 1,877 10,823 570,000+
202209061,094 1,873 10,807 560,000+
202209051,094 1,871 10,796 560,000+
202209041,093 1,870 10,794 560,000+
202209031,092 1,868 10,788 560,000+
202209021,092 1,867 10,784 560,000+
202209011,092 1,863 10,751 550,000+
202208311,091 1,861 10,735 550,000+
202208291,081 1,845 10,692 550,000+
202208281,081 1,843 10,673 550,000+
202208271,080 1,840 10,659 550,000+
202208261,079 1,839 10,647 550,000+
202208251,076 1,837 10,641 550,000+
202208241,076 1,836 10,637 550,000+
202208231,071 1,833 10,625 550,000+
202208221,069 1,828 10,600 550,000+
202208211,069 1,827 10,598 550,000+
202208201,067 1,825 10,570 550,000+
202208191,066 1,825 10,570 550,000+
202208181,064 1,825 10,570 550,000+
202208161,061 1,823 10,564 550,000+
202208151,060 1,820 10,538 550,000+
202208131,060 1,816 10,496 550,000+
202208101,058 1,803 10,463 550,000+
202208091,058 1,800 10,443 550,000+
202208081,057 1,795 10,402 550,000+
202208071,052 1,788 10,304 550,000+
202208061,051 1,787 10,304 550,000+
202208051,050 1,786 10,298 550,000+
202208021,048 1,778 10,231 550,000+
202208011,048 1,777 10,222 550,000+
202207311,047 1,776 10,220 550,000+
202207301,041 1,764 10,147 550,000+
202207291,039 1,757 10,071 550,000+
202207281,037 1,748 9,983 550,000+
202207271,035 1,742 9,929 550,000+
202207261,034 1,735 9,901 550,000+
202207251,031 1,733 9,833 540,000+
202207221,031 1,726 9,870 540,000+
202207201,027 1,720 9,844 540,000+
202207181,026 1,716 9,816 540,000+
202207161,025 1,708 9,759 520,000+
202207151,021 1,707 9,754 520,000+
202207131,021 1,702 9,729 520,000+
202207121,020 1,699 9,684 520,000+
202207111,019 1,698 9,682 520,000+
202207101,018 1,694 9,668 520,000+
202207091,017 1,689 9,633 520,000+
202207071,012 1,682 9,605 520,000+
202207061,011 1,681 9,603 520,000+
20220705999 1,674 9,576 520,000+
20220703998 1,673 9,574 520,000+
20220701997 1,666 9,528 520,000+
20220630997 1,661 9,505 510,000+
20220629997 1,634 9,264 510,000+
20220628996 1,617 9,184 510,000+
20220627995 1,614 9,168 510,000+
20220624988 1,602 9,109 510,000+
20220623987 1,601 9,107 510,000+
20220622985 1,599 9,101 510,000+
20220621983 1,596 9,093 510,000+
20220620981 1,594 9,086 510,000+
20220619981 1,590 9,047 510,000+
20220618980 1,589 9,045 510,000+
20220617974 1,584 9,027 510,000+
20220616973 1,572 8,926 510,000+
20220615972 1,560 8,803 510,000+
20220614971 1,558 8,795 510,000+
20220613969 1,557 8,786 510,000+
20220612967 1,555 8,762 500,000+
20220611967 1,553 8,754 500,000+
20220610964 1,550 8,746 500,000+
20220609960 1,545 8,720 500,000+
20220608957 1,542 8,706 500,000+
20220607955 1,540 8,694 500,000+
20220606954 1,540 8,694 500,000+
20220602951 1,537 8,656 500,000+
20220601950 1,536 8,654 500,000+
20220531949 1,532 8,612 500,000+
20220530941 1,519 8,553 500,000+
20220529940 1,516 8,533 500,000+
20220528939 1,514 8,528 500,000+
20220527938 1,514 8,528 500,000+
20220526937 1,513 8,526 500,000+
20220525936 1,513 8,526 490,000+
20220524933 1,511 8,498 490,000+
20220523932 1,510 8,496 490,000+
20220522931 1,508 8,479 490,000+
20220521928 1,507 8,475 490,000+
20220520927 1,506 8,469 490,000+
20220519925 1,498 8,409 490,000+
20220518924 1,498 8,409 499,000+
20220516923 1,491 8,365 490,000+
20220515920 1,491 8,365 490,000+
20220514919 1,488 8,340 490,000+
20220510918 1,484 8,324 490,000+
20220506917 1,480 8,292 490,000+
20220501915 1,476 8,274 490,000+
20220430915 1,475 8,266 490,000+
20220429913 1,464 8,215 490,000+
20220428911 1,461 8,195 490,000+
20220427910 1,458 8,171 480,000+
20220426910 1,451 8,110 480,000+
20220425909 1,450 8,108 480,000+
20220424908 1,447 8,102 480,000+
20220423908 1,446 8,098 480,000+
20220422907 1,443 8,086 480,000+
20220421906 1,438 8,057 480,000+
20220420905 1,434 8,045 480,000+
20220419902 1,431 8,029 480,000+
20220418900 1,431 8,029 480,000+
20220416895 1,423 7,996 480,000+
20220415894 1,422 7,994 480,000+
20220414893 1,419 7,984 480,000+
20220413892 1,418 7,982 480,000+
20220412891 1,416 7,911 480,000+
20220410891 1,415 7,922 480,000+
20220409889 1,415 7,922 480,000+
20220408889 1,412 7,910 480,000+
20220403888 1,411 7,906 480,000+
20220402885 1,409 7,886 480,000+
20220331884 1,408 7,880 480,000+
20220330881 1,401 7,821 480,000+
20220329878 1,398 7,807 480,000+
20220327876 1,396 7,788 480,000+
20220326873 1,393 7,776 480,000+
20220325871 1,392 7,774 480,000+
20220324866 1,388 7,744 480,000+
20220323865 1,386 7,732 480,000+
20220322864 1,384 7,717 480,000+
20220320864 1,381 7,694 480,000+
20220318860 1,379 7,672 480,000+
20220316858 1,371 7,640 480,000+
20220315858 1,365 7,604 480,000+
20220314857 1,364 7,602 480,000+
20220312857 1,363 7,600 480,000+
20220311853 1,361 7,594 480,000+
20220310851 1,358 7,586 480,000+
20220309850 1,357 7,580 470,000+
20220304847 1,356 7,576 470,000+
20220303846 1,351 7,542 470,000+
20220302845 1,350 7,536 470,000+
20220301844 1,350 7,536 470,000+
20220228844 1,346 7,518 470,000+
20220222839 1,336 7,472 470,000+
20220218837 1,335 7,468 470,000+
20220215837 1,325 7,437 470,000+
20220213836 1,325 7,437 470,000+
20220211836 1,324 7,431 470,000+
20220131836 1,323 7,422 470,000+
20220130835 1,322 7,418 460,000+
20220129831 1,322 7,418 460,000+
20220128828 1,319 7,403 460,000+
20220127818 1,308 7,274 460,000+
20220126815 1,302 7,239 460,000+
20220125814 1,301 7,238 460,000+
20220124805 1,294 7,190 460,000+
20220123803 1,291 7,180 460,000+
20220122802 1,289 7,170 460,000+
20220121800 1,282 7,136 460,000+
20220120798 1,267 7,091 460,000+
20220119796 1,267 7,091 460,000+
20220118795 1,264 7,077 460,000+
20220117792 1,261 7,057 460,000+
20220115791 1,261 7,057 450,000+
20220114787 1,254 7,026 450,000+
20220112784 1,250 6,989 450,000+
20220111784 1,247 6,979 450,000+
20220110784 1,246 6,977 450,000+
20220108781 1,239 6,917 450,000+
20220107780 1,239 6,917 450,000+
20220103780 1,234 6,889 450,000+
20220101779 1,233 6,885 450,000+
20211231777 1,231 6,867 450,000+
20211230756 1,207 6,701 440,000+
20211229753 1,197 6,687 440,000+
20211228753 1,196 6,619 440,000+
20211227752 1,193 6,608 440,000+
20211226751 1,187 6,586 440,000+
20211225748 1,187 6,586 440,000+
20211224746 1,184 6,568 440,000+
20211223741 1,175 6,514 440,000+
20211222739 1,174 6,510 440,000+
20211220738 1,169 6,488 440,000+
20211218733 1,168 6,484 440,000+
20211217732 1,167 6,476 440,000+
20211216722 1,163 6,466 430,000+
20211215719 1,144 6,388 430,000+
20211214710 1,141 6,366 430,000+
20211212708 1,138 6,358 430,000+
20211211702 1,136 6,352 430,000+
20211210700 1,134 6,339 430,000+
20211209699 1,134 6,339 430,000+
20211208696 1,132 6,335 430,000+
20211207691 1,127 6,313 430,000+
20211206690 1,126 6,309 430,000+
20211205689 1,126 6,309 430,000+
20211204683 1,121 6,275 430,000+
20211203681 1,120 6,271 430,000+
20211202679 1,118 6,261 430,000+
20211130678 1,114 6,247 430,000+
20211129668 1,106 6,204 430,000+
20211128660 1,099 6,180 430,000+
20211127657 1,087 6,156 430,000+
20211126650 1,083 6,132 430,000+
20211125647 1,075 6,105 430,000+
20211124640 1,070 6,084 430,000+
20211123637 1,068 6,074 430,000+
20211122636 1,062 6,058 430,000+
20211120634 1,057 6,036 430,000+
20211119626 1,051 6,000 430,000+
20211118623 1,050 5,994 430,000+
20211117620 1,047 5,971 430,000+
20211115614 1,041 5,925 430,000+
20211113613 1,039 5,874 420,000+
20211112611 1,033 5,859 420,000+
20211110609 1,032 5,855 420,000+
20211109608 1,029 5,845 420,000+
20211108607 1,029 5,845 420,000+
20211106606 1,028 5,843 420,000+
20211105604 1,027 5,841 420,000+
20211104601 1,023 5,820 420,000+
20211103600 1,022 5,816 420,000+
20211102599 1,019 5,810 420,000+
20211101599 1,019 5,810 420,000+
20211031598 1,019 5,810 420,000+
20211030576 1,002 5,729 420,000+
20211029574 989 5,626 420,000+
20211028571 981 5,605 420,000+
20211027567 962 5,553 420,000+
20211026563 959 5,545 420,000+
20211025560 955 5,524 420,000+
20211024554 943 5,461 420,000+
20211022551 941 5,453 420,000+
20211021547 939 5,439 420,000+
20211020546 937 5,430 420,000+
20211019543 935 5,418 420,000+
20211018542 935 5,418 420,000+
20211016541 931 5,409 410,000+
20211015537 927 5,389 410,000+
20211012535 924 5,381 410,000+
20211011531 919 5,359 410,000+
20211010529 919 5,359 410,000+
20211009525 914 5,327 410,000+
20211008524 914 5,327 410,000+
20211005523 914 5,327 410,000+
20211002522 914 5,327 410,000+
20211001521 913 5,325 410,000+
20210930517 911 5,305 410,000+
20210929504 891 5,238 410,000+
20210928497 883 5,208 410,000+
20210927494 870 5,139 410,000+
20210926491 870 5,139 410,000+
20210925486 865 5,119 410,000+
20210920484 856 5,054 400,000+
20210919479 854 5,042 400,000+
20210918471 846 4,995 400,000+
20210917466 842 4,988 400,000+
20210916456 825 4,928 400,000+
20210915450 809 4,879 400,000+
20210913445 802 4,842 400,000+
20210911444 801 4,836 400,000+
20210910441 796 4,800 400,000+
20210909437 794 4,794 400,000+
20210908434 792 4,786 400,000+
20210907432 791 4,780 400,000+
20210904430 790 4,768 400,000+
20210903428 790 4,768 400,000+
20210831427 786 4,745 400,000+
20210830410 756 4,592 400,000+
20210829405 726 4,478 400,000+
20210828400 710 4,442 390,000+
20210826391 700 4,388 390,000+
20210825389 699 4,380 390,000+
20210824385 699 4,380 390,000+
20210822380 696 4,368 390,000+
20210820378 695 4,363 390,000+
20210818374 692 4,286 390,000+
20210817370 685 4,265 390,000+
20210814366 682 4,251 390,000+
20210812363 678 4,226 390,000+

Related posts on CnEVPost

Nio unveils 4th-gen swap station, new 640-kW supercharger, and 2024 buildout plans-CnEVPost
Nio ET9 sedan launched: Price starts at $108,000, deliveries due in Mar 2025
Nio unveils 4th-gen swap station, new 640-kW supercharger, and 2024 buildout plans-CnEVPost
Nio launches Firefly brand to take on Mini, Smart, 1st model to be launched in Apr 2025
Nio unveils 4th-gen swap station, new 640-kW supercharger, and 2024 buildout plans-CnEVPost
William Li opens X account as Nio prepares to reach more overseas markets
Nio unveils 4th-gen swap station, new 640-kW supercharger, and 2024 buildout plans-CnEVPost
Firefly's product launch in Europe may be 1 quarter later than in China, brand chief says
